Modern electric propulsion systems have revolutionized industries ranging from consumer electronics to aviation. At the heart of this transformation lies a small but powerful component: the Electronic Speed Controller (ESC). If you have ever flown a drone, driven an electric RC car, or worked with brushless DC (BLDC) motors in industrial automation, you have already benefited from ESC technology. But why exactly are ESCs so critical? This blog will explore what they are, how they work, and why they are indispensable in today’s applications.
What Is an Electronic Speed Controller?

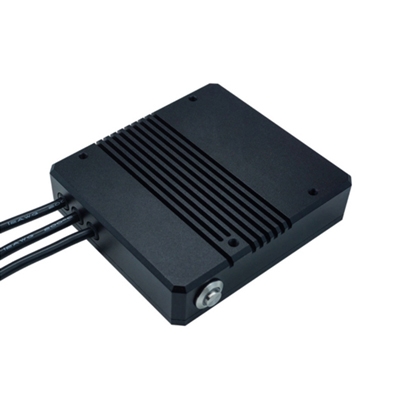

An Electronic Speed Controller (ESC) is an electronic circuit that regulates the speed, direction, and braking of an electric motor. It acts as the link between the power source (battery or power supply) and the motor, converting direct current (DC) into the precise voltage and current waveforms the motor requires.
For brushless motors—which dominate in drones, e-bikes, robotics, and many other fields—ESCs are particularly important. Unlike brushed motors that can run directly from a DC source, brushless motors require timed pulses of current delivered to their stator coils. The ESC performs this commutation electronically, ensuring smooth and efficient motor rotation.
In simple terms, the ESC is the "brain" that tells the motor how fast to spin, in which direction, and under what torque conditions.
Core Functions of an ESC
1. Speed Regulation
The most obvious function of an ESC is to control motor speed. By adjusting the timing and frequency of the signals sent to the motor, the ESC can increase or decrease RPM. This is critical in drones, for example, where tiny adjustments in propeller speed translate into stable flight.
2. Electronic Commutation
In BLDC electric motors, there are no brushes to mechanically switch current flow between coils. Instead, the ESC constantly monitors rotor position (via sensors or back EMF detection) and switches current electronically. This enables higher efficiency, longer lifespan, and less maintenance.
3. Direction Control
ESCs allow motors to run forward or in reverse, depending on the application. In robotics and electric vehicles, bidirectional control is essential for mobility.
4. Braking and Safety Features
Many ESCs incorporate regenerative braking, which not only slows the motor but also feeds energy back into the battery. They also include safety mechanisms such as overcurrent protection, thermal shutdown, and low-voltage cutoff to prevent damage.
5. Communication with Controllers
ESCs can receive commands from microcontrollers, flight controllers, or RC receivers. They interpret throttle signals (PWM, CAN, DShot, etc.) and translate them into motor action with minimal delay.
Why ESCs Are Necessary
Now that we understand what ESCs do, let’s look at why they are indispensable in today’s motor-driven systems.
1. They Unlock the Potential of Brushless Motors
Brushless motors are lighter, more efficient, and more durable than brushed motors. However, they cannot run without an ESC to handle commutation. Without ESCs, brushless motors would be unusable in most practical applications.
For example, drones rely heavily on BLDC motors for high thrust-to-weight ratios. The ESC makes sure each motor spins at exactly the right speed to keep the aircraft stable in the air.
2. Precise Control for Complex Applications
Imagine trying to fly a quadcopter without precise motor control. It would be impossible to maintain balance, hover, or perform maneuvers. ESCs provide this precision by making real-time adjustments to motor output based on sensor feedback.
In industrial settings, ESCs allow conveyor belts to operate at variable speeds, robotic arms to move with accuracy, and automated systems to respond dynamically to changes.
3. Efficiency and Energy Savings
ESCs optimize the power delivered to the motor, minimizing losses and extending battery life. Features such as regenerative braking and soft-start technology reduce waste and improve overall system efficiency.
This is critical in electric vehicles, where every percentage of efficiency translates into longer range.
4. Safety and Reliability
Modern ESCs are equipped with safeguards to prevent catastrophic failures. Overheating, overcurrent, or undervoltage could damage motors and batteries if not managed. ESCs act as protectors, automatically adjusting or shutting down operation when parameters exceed safe limits.
For example, in drones, if one ESC fails, it could result in a crash. That’s why high-quality ESCs with redundancy and error detection are necessary.
5. Flexibility Across Applications
ESCs enable the same motor hardware to be used in vastly different contexts. By changing ESC firmware or parameters, the same BLDC motor can power a drone, an e-bike, or a robotic manipulator, each with unique speed and torque profiles.
This flexibility reduces hardware costs and simplifies design.
ESCs in Different Applications
1. Drones and UAVs
The most recognizable use of ESCs is in drones. Each rotor is controlled by an ESC, and together they allow for stable flight, hovering, and agile maneuvers. Without ESCs, drones simply would not exist in their modern form.
2. Electric Vehicles
In electric cars, scooters, and e-bikes, ESCs regulate motor torque and speed based on throttle input. They also enable regenerative braking, which improves range.
3. Robotics
ESCs power robotic arms, mobile robots, and automation systems, giving them the precision and responsiveness necessary for tasks like assembly, delivery, and inspection.
4. RC Hobby Models
From cars to airplanes, RC models rely on ESCs for smooth and reliable performance. Enthusiasts benefit from features like programmable throttle curves and braking.
5. Industrial Automation
Conveyor belts, pumps, and CNC machines use ESCs (often referred to as variable frequency drives in industrial contexts) to regulate motor operation for efficiency and precision.
Advances in ESC Technology
ESC technology is constantly evolving to meet the demands of new applications. Some recent developments include:
- Sensorless ESCs: Rely on back EMF detection instead of physical sensors, reducing complexity and cost.
- Smart ESCs: Communicate with flight controllers or vehicle ECUs to share real-time telemetry such as current, voltage, temperature, and RPM.
- High-frequency switching: Improves efficiency and reduces noise.
- Compact designs: Allow ESCs to be integrated directly into motors (common in drones).
- Custom firmware: Users can tune ESCs for specific applications, whether racing drones or industrial automation.
Common Challenges and Considerations
While ESCs are indispensable, choosing and using them requires attention to detail:
- Current Rating: An undersized ESC may overheat or fail under load.
- Voltage Compatibility: The ESC must match the motor and battery specifications.
- Firmware and Protocols: Compatibility with the controller (PWM, DShot, CAN) is essential.
- Cooling: High-power ESCs require adequate heat dissipation.
- Reliability: Cheap ESCs may cut costs but risk failure. In mission-critical systems, high-quality components are a must.
Future Outlook
As electrification expands across industries, the role of ESCs will grow. We can expect:
- Integration with AI and IoT: Smarter ESCs capable of predictive maintenance and adaptive control.
- Higher Efficiency Designs: Using wide bandgap semiconductors like SiC and GaN for faster switching and reduced heat.
- Miniaturization: More compact ESCs for wearable robotics and micro-drones.
- Standardization: Unified communication protocols to simplify integration across platforms.
Conclusion
Electronic Speed Controllers may not grab headlines, but they are the unsung heroes of modern electric propulsion. Without them, brushless motors would be impractical, drones would never fly, and electric vehicles would lack the precision and efficiency that make them viable.
By enabling speed regulation, direction control, safety, and efficiency, ESCs ensure that electric motors operate to their fullest potential. Whether you’re a hobbyist flying a quadcopter, an engineer designing an industrial robot, or a company building the next generation of electric vehicles, ESCs are not optional—they are necessary.
