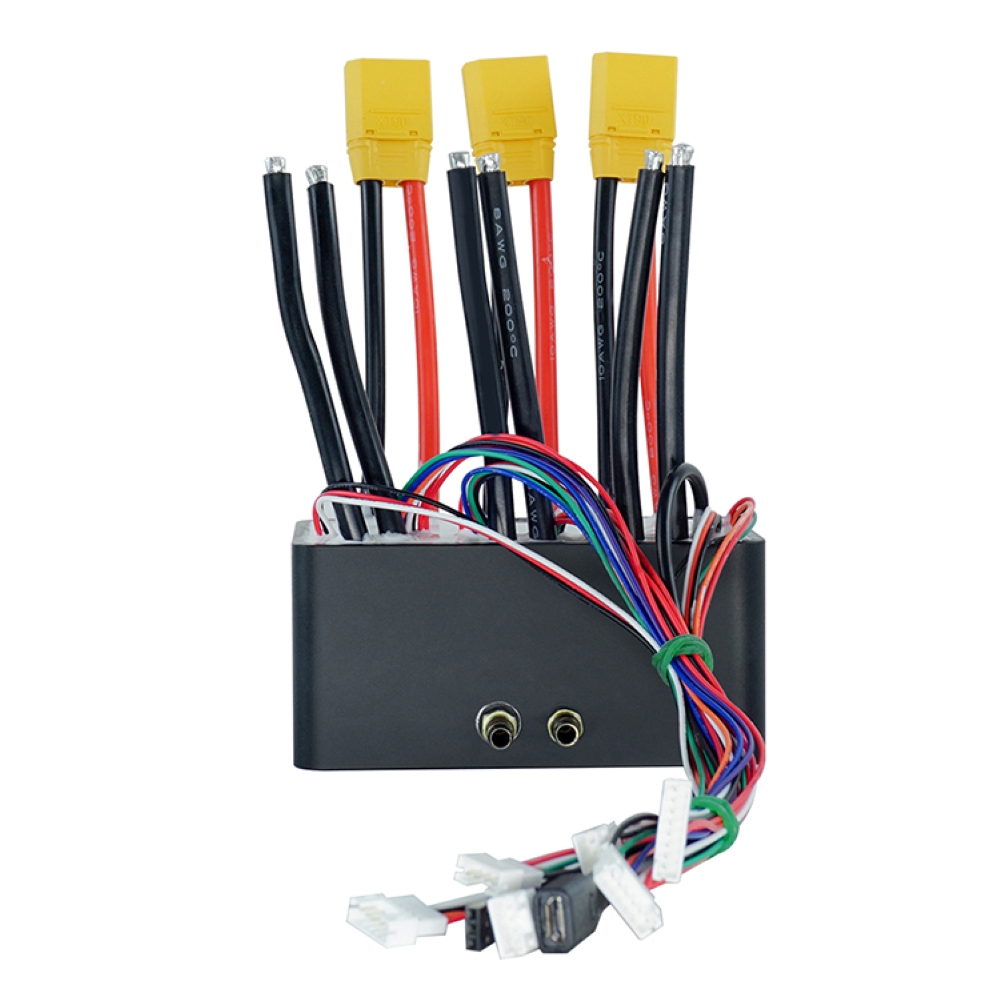

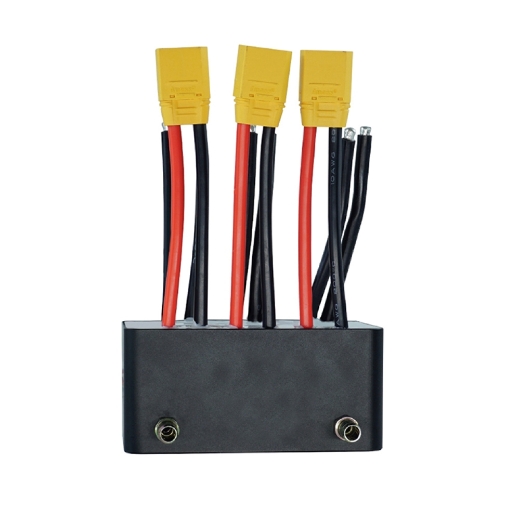

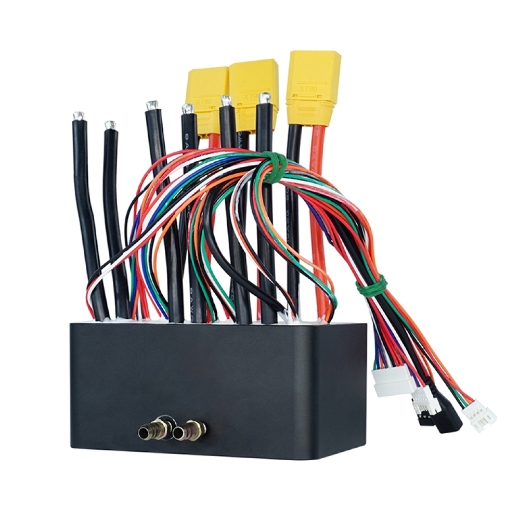

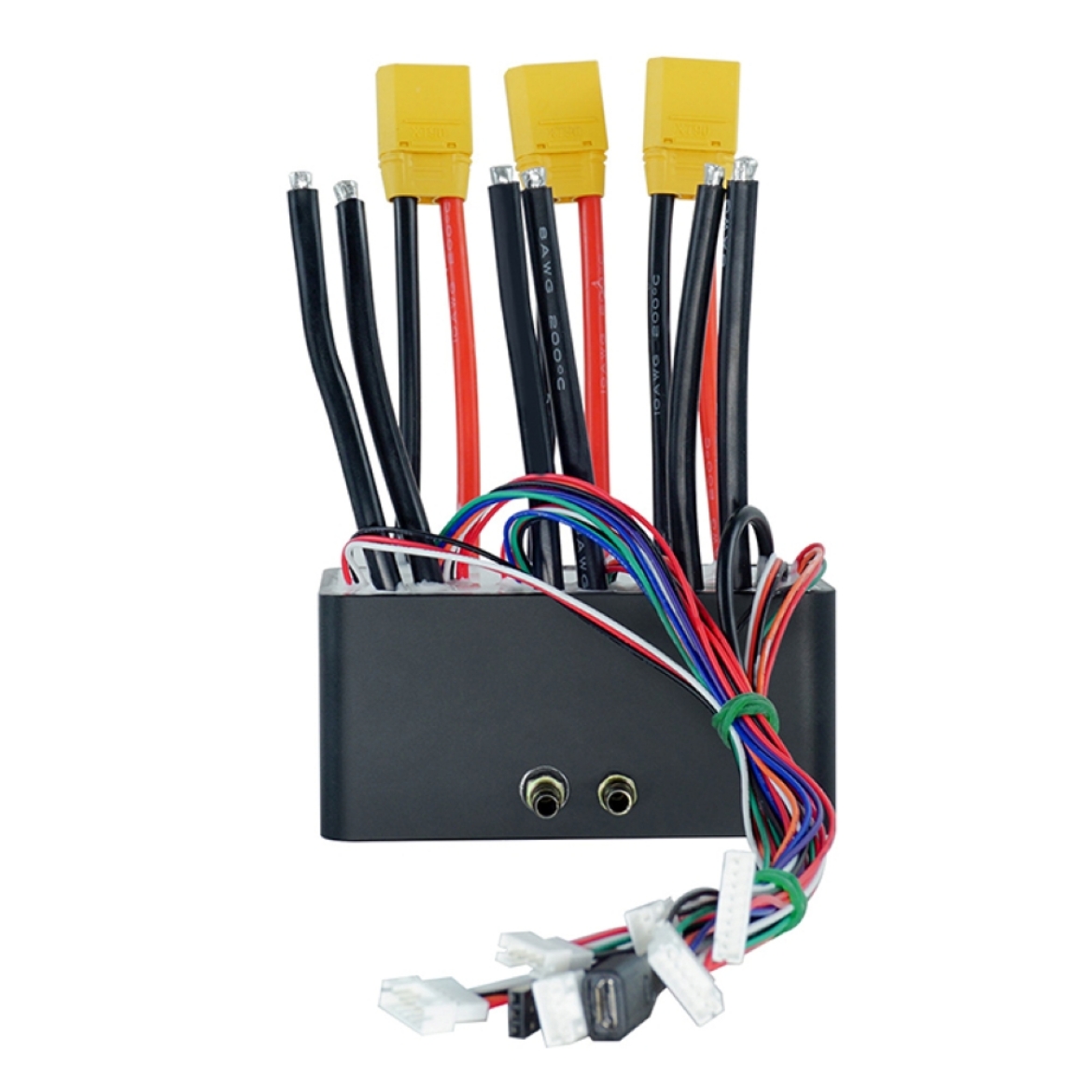

Picture of 200A 3-16S Electronic Speed Controller for BLDC Motor Picture of 200A 3-16S Electronic Speed Controller for BLDC Motor Picture of 200A 3-16S Electronic Speed Controller for BLDC Motor

200A 3-16S Electronic Speed Controller for BLDC Motor

$749.68
| 1 review(s) | Add your review
High-performance 200A Electronic Speed Controller for BLDC Motor. Operating at 14–75V (4–20S) with a continuous current of 200A, this compact ESC features IP67 waterproof protection and supports USB, CAN, and UART 3 communication interfaces. Its small footprint makes it ideal for applications such as combat robots, electric surfboards, and robotic arms.
Free shipping
Delivery date: 6-12 days
SKU: BLDC-ESC-200A
increase decrease

Waterproof 200A BLDC ESC, 14–75V (3–16S), 150,000 ERPM, supports ABI, HALL, AS5047, AS5048A sensors. Features 8 AWG motor and 10 AWG power cables. Ideal for RC cars, robotic arms, and model vehicles.

Specification

Model BLDC-ESC-200A
Voltage 14-75V (4-20S safe, voltage spikes must not exceed 84V)
Continuous Current 200A
Supported Sensors ABI, HALL, AS5047, AS5048A
EPRM 150000
Communication Ports USB, CAN, UART
Motor Cable 8 AWG
Power Cable 10 AWG
Adjustable Protection Measures Low input voltage/high input voltage/high motor current/high input current

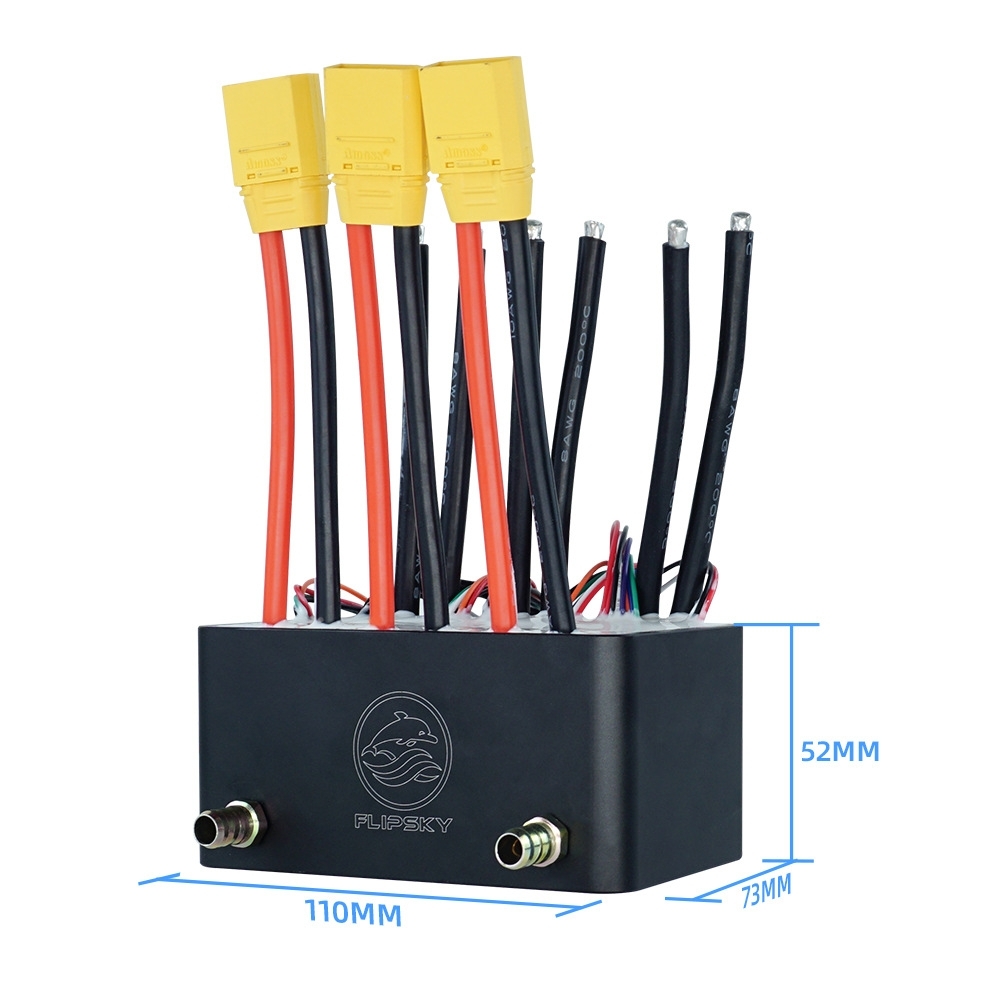

Dimension (Unit: mm)

Dimension of 200a electronic speed controller

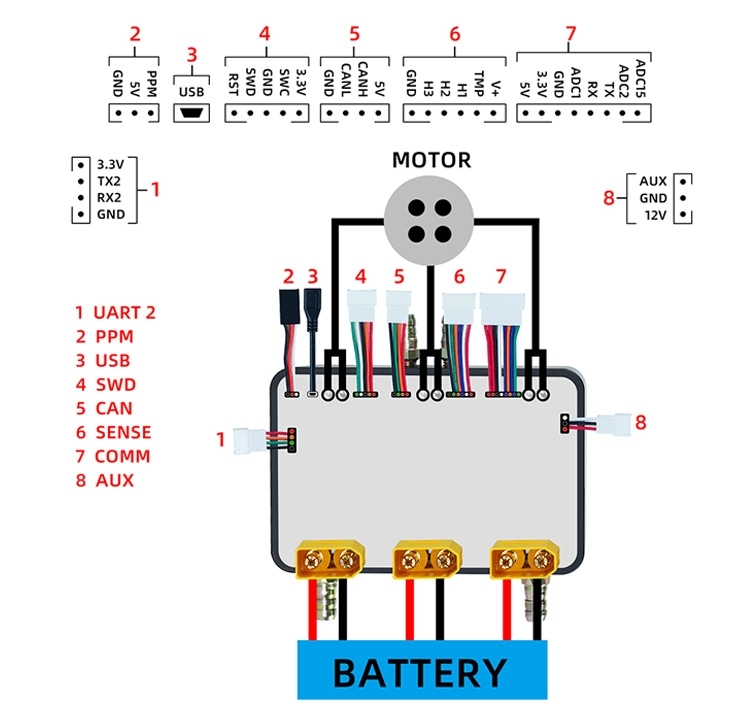

Wiring Diagram

Wiring diagram of 200a electronic speed controller

Applications

Electronic speed controller for battle robot

Battle Robot

Electronic speed controller for DIY off road vehicle

DIY off Road Vehicle

Electronic speed controller for mechanical arm

Mechanical Arm

Electronic speed controller for robot

Robot

Q: How do you match an ESC to a motor?

A: To properly match an ESC to a motor, ensure the ESC can handle the motor's maximum current draw and the voltage of the battery you'll be using. The ESC's current rating should be 10-20% higher than the BLDC motor's to provide a safety margin.

Write your own review
*
*
Existing reviews
Compact and reliable ESC
I purchased this 200A ESC for my electric surfboard, and it has been excellent. It performs well, and I adore its small size, really. Particularly for outdoor use, the waterproof feature is a significant plus. Excellent quality and dependability!
Casey | 4/28/2026 3:46 AM
Was this review helpful? Yes No (0/0)
