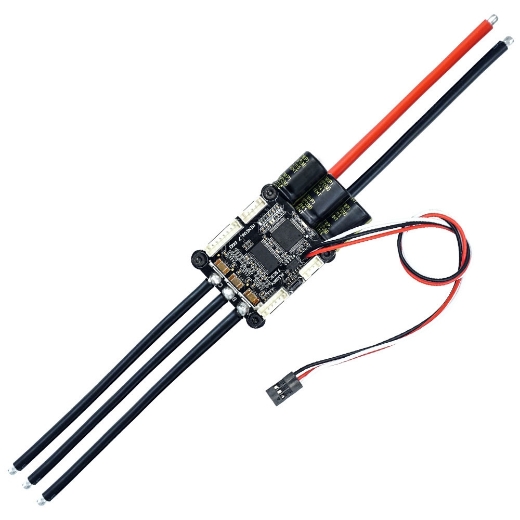

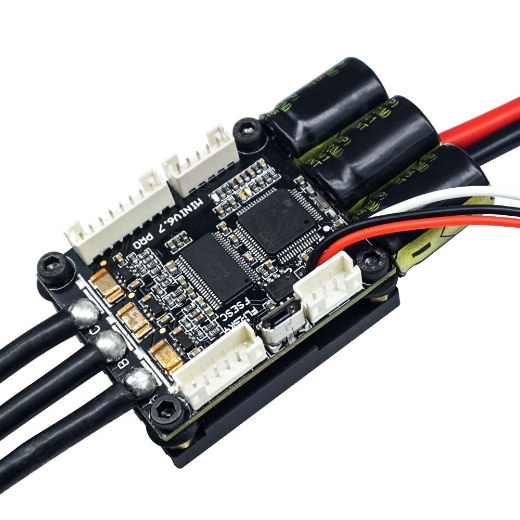

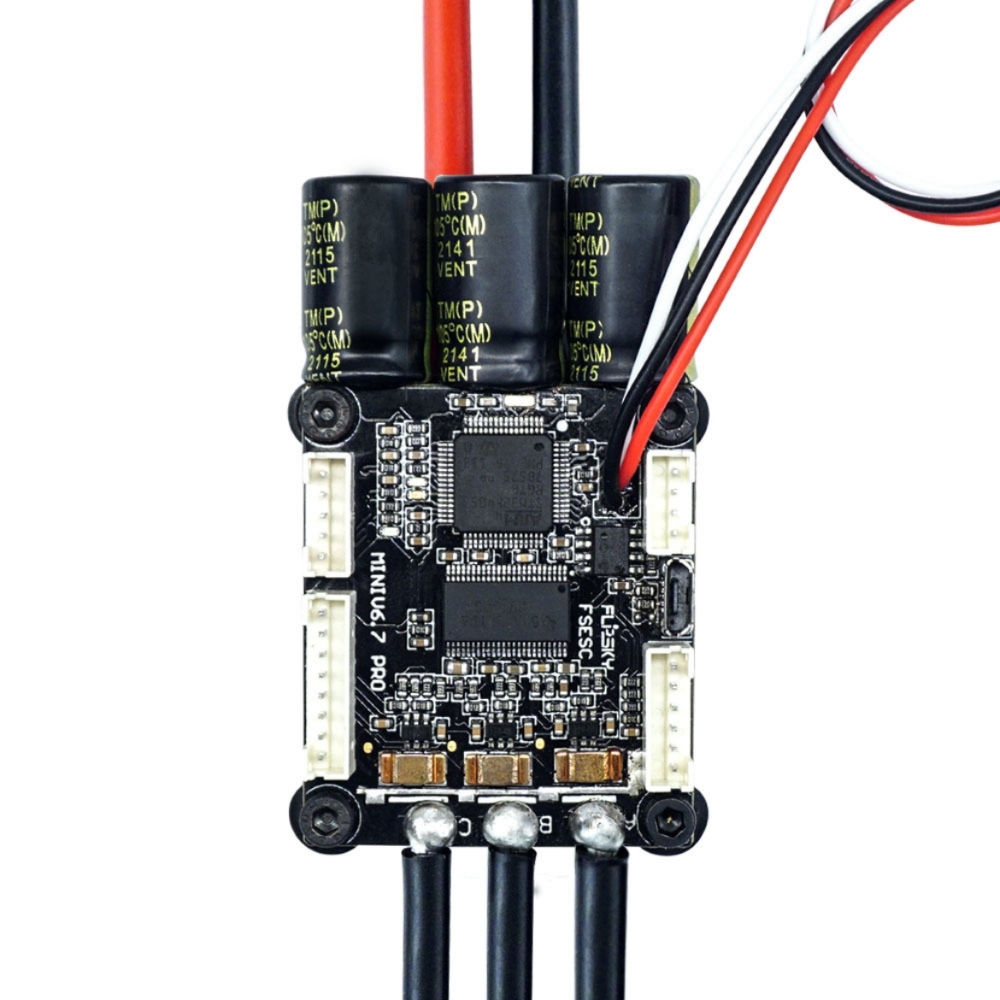

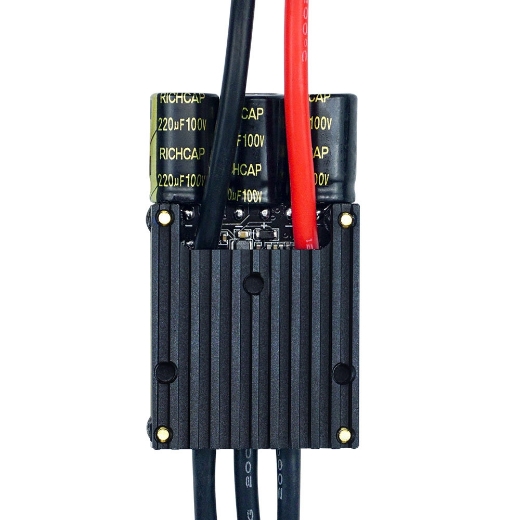

70A 4-12S Electronic Speed Controller for BLDC Motor

70A ESC controller for brushless motors with a safe voltage range of 14V–60V (4–12S). Automatically stabilizes vehicles during brief loss of control; widely used in RC and automotive applications.

Specifications

Features

• The 70A 4–12S ESC controller supports multiple control modes, including current, duty cycle, speed, and position.
• It has protection functions: low voltage protection, high voltage protection, over-current protection, temperature abnormality protection and MOSFETs over-temperature protection.
• This electronic speed controller can connect to an IMU module via the I²C interface for vehicle balance, supporting units like MPU9250, MPU9150, MPU6050, LSM6DS3, and BMI160.

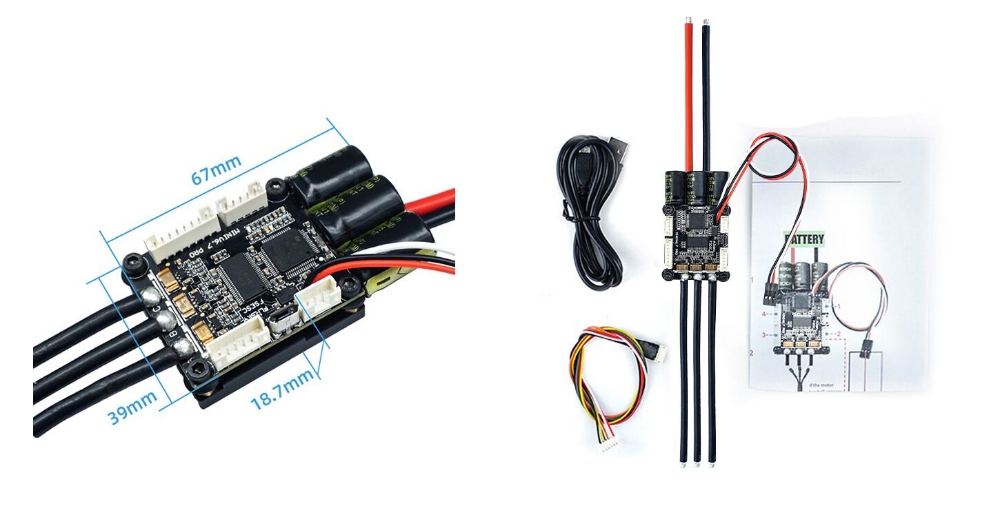

Dimension & List

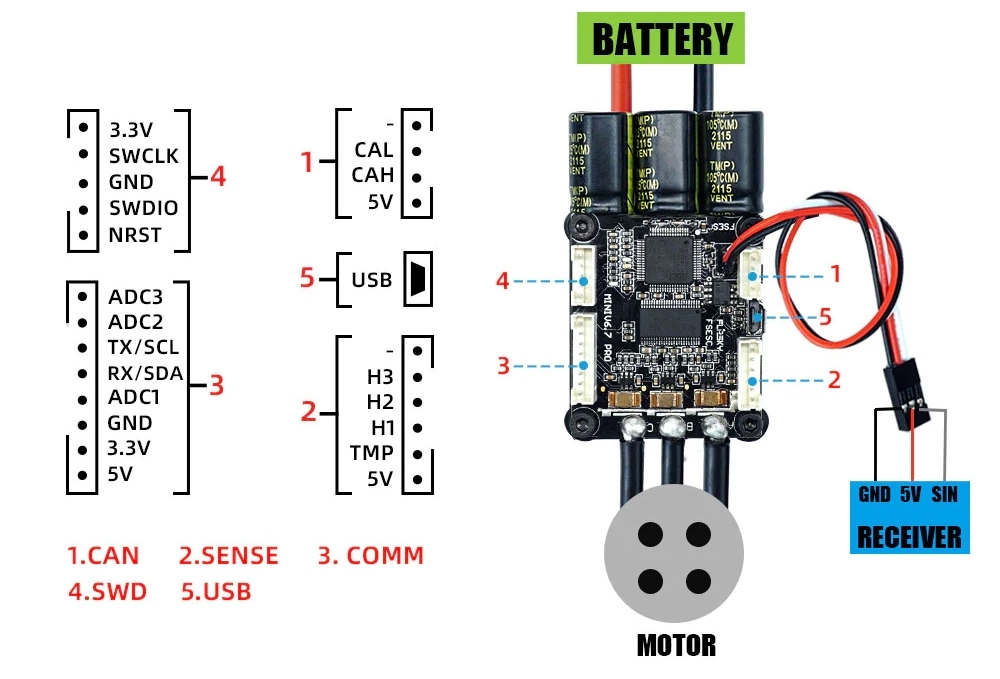

Wiring Diagram

Battle Robot

DIY off Road Vehicle

Mechanical Arm

Robot

Q: Do you need a electronic speed controller for a brushless motor?

A: Yes, to operate a bldc motor almost always require a dedicated speed controller, also known as an electronic speed controller (ESC) or driver. These controllers are necessary to regulate the voltage and current delivered to the motor's windings, enabling precise control over speed, direction, and torque.
