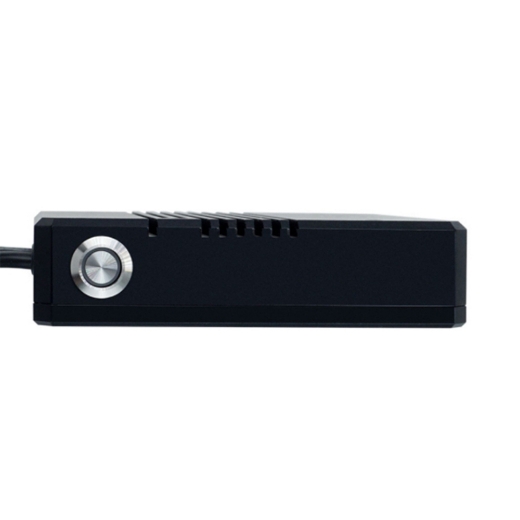

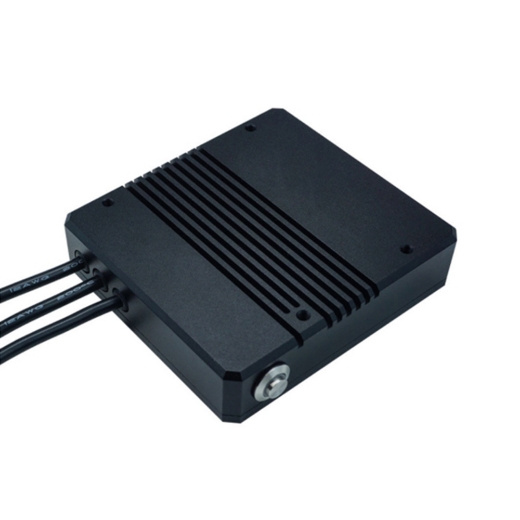

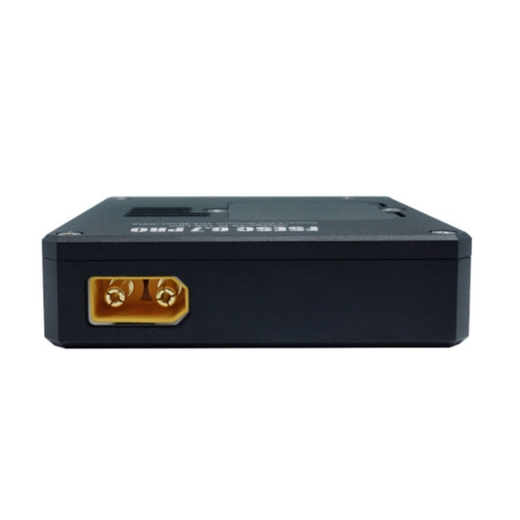

Picture of 60A 3-12S Electronic Speed Controller for BLDC Motor
Picture of 60A 3-12S Electronic Speed Controller for BLDC Motor Picture of 60A 3-12S Electronic Speed Controller for BLDC Motor Picture of 60A 3-12S Electronic Speed Controller for BLDC Motor Picture of 60A 3-12S Electronic Speed Controller for BLDC Motor

60A 3-12S Electronic Speed Controller for BLDC Motor

$664.82
| 1 review(s) | Add your review
High-performance brushless ESC controller with a compact design, delivering a stable 60A continuous current and up to 200A peak. Features a sealed, waterproof, and dustproof housing for durability in harsh environments, along with excellent heat dissipation. Supports multiple control modes and is ideal for single-drive brushless motor systems.
Free shipping
Delivery date: 7-14 days
SKU: BLDC-ESC-603
increase decrease
  • DESCRIPTION
  • DOCUMENTS

Single motor ESC with aluminum alloy housing for strong heat dissipation and dust protection. Supports 60A continuous current. Ideal for RC cars, robots, and model applications.

Specification

Model BLDC-ESC-S60A
Voltage 8V-60V (3-12S)
Power Current 60A continuous/200A peak
Signal PWM input
Communication Port USB, CAN, UART
Control Modes BLDC, FOC, DC
Size 100x92x22.5 (mm)
PCB 6F 18 OC
Hardware V6.7PRO
Support Sensor ABI, HALL, AS 5047
Input Source PPM, analog, NRF, NYKO, KAMA, NUNCHUCK

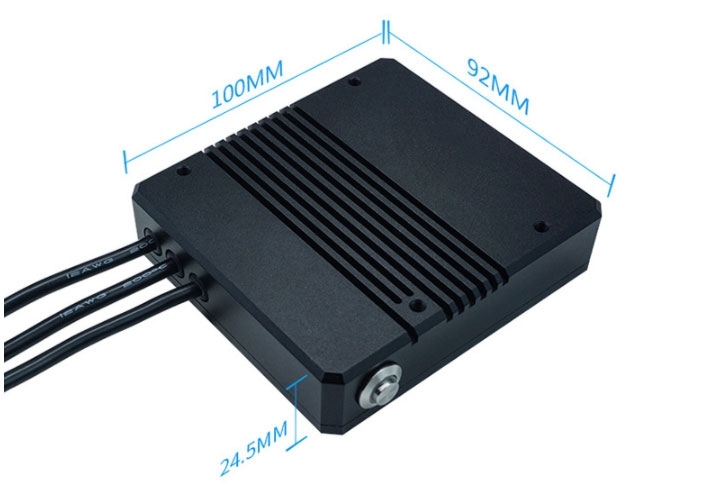

Dimension (Unit: mm)

60A electronic speed controller dimension

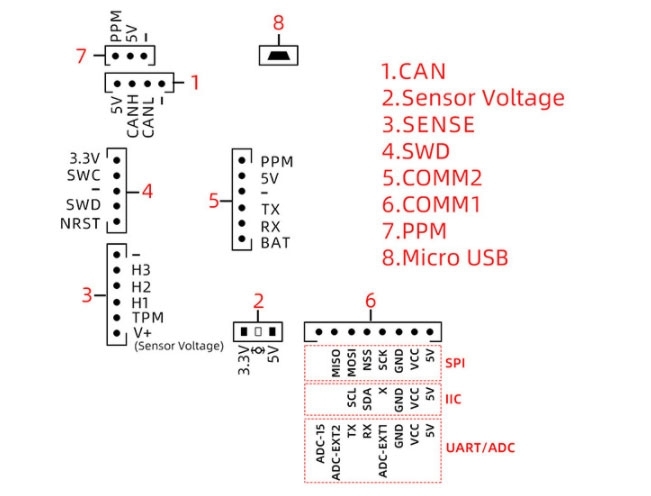

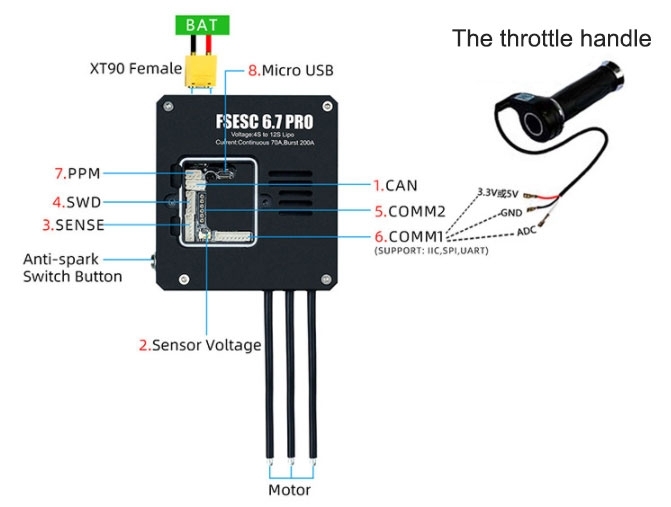

Wiring Diagram

60A electronic speed controller wiring diagram

60A single motor brushless esc controller wiring diagram

Applications

50A electronic speed controller for battle robot

Battle Robot

50A electronic speed controller for DIY off road vehicle

DIY off Road Vehicle

50A electronic speed controller for mechanical arm

Mechanical Arm

50A electronic speed controller for robot

Robot

Q: What does an electronic speed controller do?

A: An electronic speed controller (ESC) regulates the speed, direction, and braking of a BLDC motor by controlling the power it receives. It acts as the link between the battery and the motor, adjusting voltage and current based on input signals. Widely used in RC vehicles, drones, robots, and electric tools, an ESC ensures smooth motor operation, precise control, and protection against overload or overheating.

Catalogs

BLDC Motor Catalog
BLDC motor catalog

BLDC Motor Catalog

PDF download
BLDC Gear Motor Catalog
BLDC gear motor catalog

BLDC Gear Motor Catalog

PDF download
BLDC Motor Controller Catalog
BLDC motor controller catalog

BLDC Motor Controller Catalog

PDF download

BLDC Motor Controller Specs

PDF download BLDC-C120A 9V-32V BLDC Motor Controller Specs PDF download BLDC-C300B 18V-56V BLDC Motor Controller Specs PDF download BLDC-C750 18V-52V BLDC Motor Controller Specs

BLDC Motor Controller User Manual

PDF download BLDC-C50/C100 24V-60V BLDC Motor Controller User Manual PDF download BLDC-KVD2412N 9V-32V BLDC Motor Controller User Manual PDF download BLDC-KBL BLDC Motor Controller User Manual PDF download BLDC-KEB BLDC Motor Controller User Manual PDF download BLDC Motor Controller for Electric Vehicle User Manual
Write your own review
*
*
Existing reviews
Great Performance and Reliability from This 60A 12S ESC!
I got the 60A 12S electronic speed controller for my BLDC motor, and it’s been working great so far. The build quality feels really solid — the casing is well-sealed and definitely waterproof. I’ve used it outdoors a few times, and it handled dust and moisture without any problem. The ESC runs cool even under heavy load, and the throttle response is super smooth. I also like that it supports different control modes, which makes it really flexible for tuning. Totally worth the price!
Jane | 10/30/2025 9:02 AM
Was this review helpful? Yes No (0/0)
