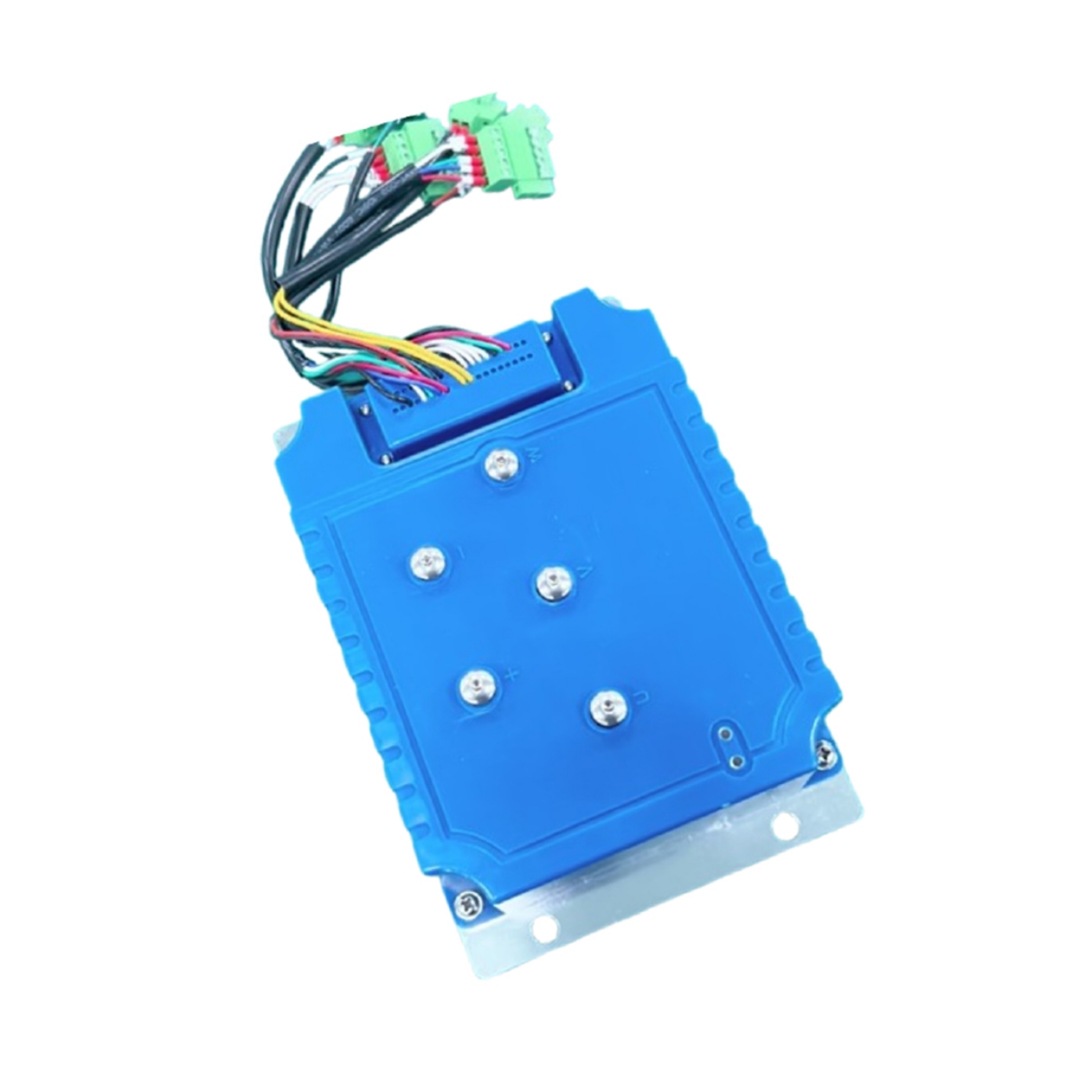

12V-72V BLDC Motor Controller for 12/24/48/72V BLDC Motor

$289.68

| 0 review(s) | Add your review

A compact, low-voltage 12-72V BLDC motor controller designed for 0.75kW–10kW motors. The controller supports CANBUS networking and integrates Hall sensor compatibility, offering high protection, mechanical brake output, and superior heat dissipation for safe and reliable motor operation.

Free shipping

Delivery date: 6-12 days

SKU: BLDC-C30100A

Voltage (DC) *
Current *

increase decrease

DESCRIPTION
DOCUMENTS

The 12V-72V brushless DC controller is perfect for logistics, AGVs, and new energy equipment, and it enables precise speed and torque control. Its wide voltage range, advanced safety features, and user-friendly functions simplify brushless motor integration, delivering high performance, efficient operation, and flexible multi-motor network capabilities in demanding industrial environments.

Specification

Model	BLDC-DBLDX-30A485S	BLDC-DBLDX-50A485S	BLDC-DBLDX-100A485S
Rated Current	30A	50A	100A
Rated Input Voltage Range	DC +12V (Customizable) DC +24~72V (Controller input voltage = motor rated voltage ±10%)
Operating Temperature Range	-40~80℃
IO Input	Supports NPN, PNP NPN: 0V is low, 5~24V is high, current 20mA PNP: 13V high output, low to ground
IO Output	Open Drain NPN Output Voltage: not exceed 30V, Current: 500mA
SV Input Characteristics	DC 0~5V range or DC 0~10V range Deadband voltage adjustment range: 0.2~1.0V Input internal resistance: 100k
PWM Input Characteristics	Frequency range: 1~10kHz (50% duty cycle) Duty cycle range: 0~100% (100Hz~1000Hz) Signal voltage: DC 5~24V
Carrier Frequency	10~20kHz
485 Communication Parameters	ID: 1~255 Baud rate: 9600 / 19200 / 38400 / 57600 / 115200 bps
CAN Communication Parameters	ID: 0~255 Baud rate: 125 / 250 / 500 kbps
Load	150% of rated current Overload duration: 30~1s (at 150% rated)
External Temperature Sensor	Customizable ntc = mf52-103f-3435-55I
Control Method	Torque Loop (Open Loop) Speed Loop (Close Loop)
Acceleration and Deceleration Times	0.5~16s motor without load
Overheating Protection	Inside the driver: +85℃
Protection Class	IP65 (DB series only)
Debugging Software	Universal Brushless Motor Control APP
Weight	2kg

Features11

Wide Voltage Range: This BLDC motor controller is compatible with a broad DC input range from 12V to 72V, suitable for pumps, fans, conveyors, and robotic applications.
Intelligent Protection: This motor driver has over-temperature protection, a 150% overload capability, and an alert history with fault code output for safe and dependable operation.
Multiple Signal Inputs: This controller accepts PWM and NPN/PNP I/O signals for simple and smooth system integration.
Flexible Motion Control: This BLDC controller supports segment speed control, JOG mode, holding brake, and customizable acceleration/deceleration for accurate motion management.
Dual Control Modes: This BLDC motor controller has two control modes: speed and torque, making it suitable for a wide range of brushless motor applications.

Dimension (Unit: mm)

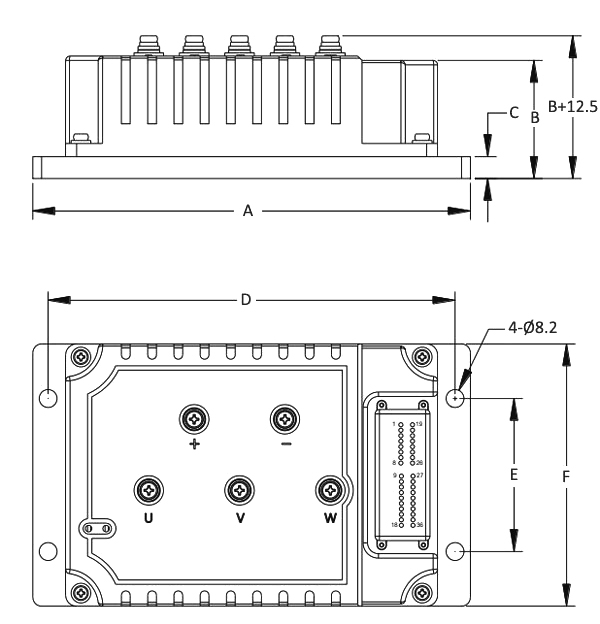

12V-72V BLDC motor controller dimensions

Model	A	B	C	D	E	F
BLDC-DBLDX-50A485S	200	56	10	186	70	120
BLDC-DBLDX-100A485S	200	58	12	186	82	132

Installation

12V-72V BLDC motor controller installation

Q: What motors are compatible with this controller?

A: This BLDC controller works with low-voltage brushless DC motors rated from 0.75kW to 10kW and DC 12–72V. Motors with integrated Hall sensors are fully supported.
