48V/72V/96V 5000W BLDC Motor

$1,746.93

| 0 review(s) | Add your review

3-phase 5000W brushless DC motor with BLDC controller, ideal for electric cars at an affordable price. The 48V motor delivers 16 Nm rated torque, peak torque up to 42 Nm, and 3000 rpm rated speed, with optional 72V or 96V operation.

Free shipping

Delivery date: 7-14 days

SKU: BLDC-180-5000W

Voltage (DC) *
With Brake *
With Matched Controller *
With Planetary Gearbox *
Inline Gearbox *
Right Angle Gearbox *

increase decrease

DESCRIPTION
DOCUMENTS

5 kW 3-phase BLDC motor kit operates at 48V/72V/96V DC, delivering up to 12.6 kW peak power, 3000 rpm rated speed, and 16 Nm rated torque. It offers high starting torque, low start-up current, reduced noise and vibration, and long service life. Custom options for voltage, brake, controller, and gearbox are available.

Specification

Model	BLDC-180WDM16030
Rated Power	5000W
Rated Voltage	48V DC	72V DC	96V DC
Matched Controller	BLDC-KBL
Rated Current	123A	82A	62A
Phase	3 phase
Rated Torque	16 Nm
Max. Torque	42 Nm
Rated Speed	3000 rpm
No-load Speed	3600 rpm
Working Efficiency	85%
Square Flange Size	180 mm
Insulation Grade	F
Protection Grade	IP65
Number of Poles	4 pairs of poles (8 poles)
Brake Length	40-50mm
Brake Apparatus Voltage	24V DC/ 48V DC, (Electromagnetic brake will trigger when the DC supply cuts off)
Motor Lead Length	30 cm, If you buy a kit (motor+controller), an extra 1 meter of wire shall be provided.
Certificate	CE, RoHS, ISO/TS16949
Weight	18.6 kg

Note: Power, voltage, speed, shaft, motor length, and motor lead of BLDC motors can be customized.

Features

Stable Speed Control: The 5000W BLDC motor maintains a set speed by continuously comparing feedback signals and adjusting voltage, ensuring consistent performance even with load changes.
Compact & High Power: Uses a permanent magnet rotor in a 3 phase design, delivering a thin profile with high power density.
Wide Speed Range: It offers a broader speed control range than AC motors and inverters, providing strong torque from low to high speeds without brushes.
Energy Efficient: Permanent magnet rotor reduces rotor losses, cutting power consumption by over 20% compared to variable frequency induction motors, supporting energy savings.
Built-in Protection: Brushless DC motor includes safety features to protect the equipment system.

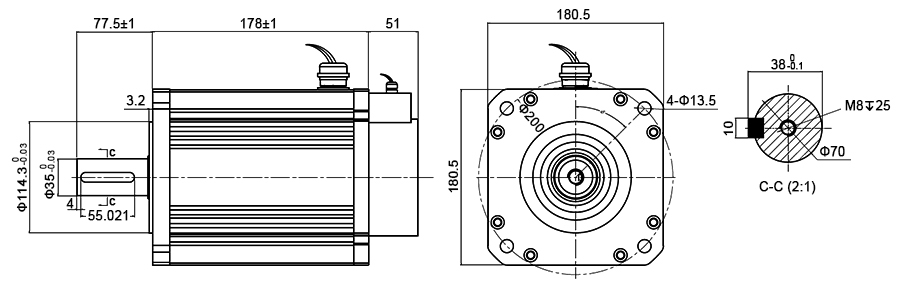

Dimension (Unit: mm)

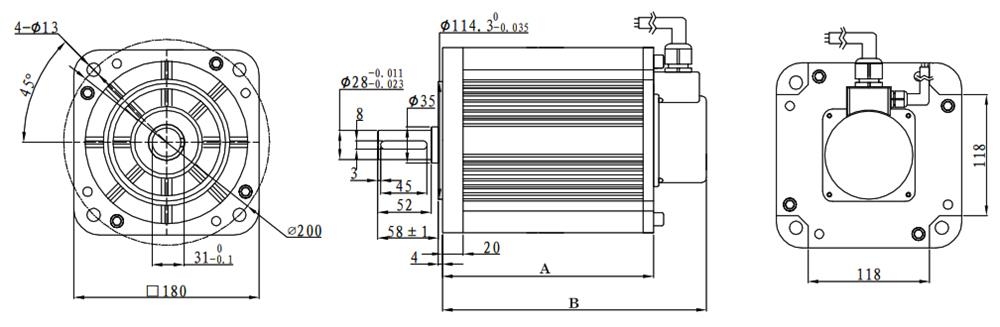

For 48V/72V Motor:

48V/72V 5000W BLDC motor dimension

LA: 205mm, LB: 235mm

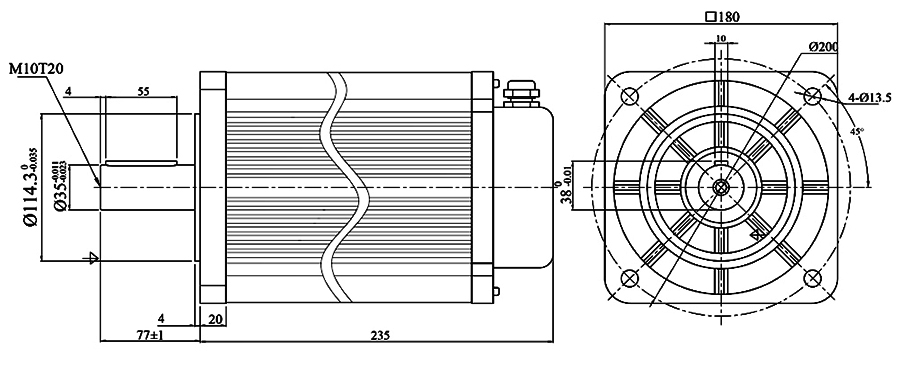

For 96V Motor:

Line Define

Power Wire

Red	Yellow	Blue
Motor U	Motor V	Motor W

Feedback Wire

Hall Line Color	Hall Signal Definition	Plug Serial Number
Orange and Black	5V	1
Orange	0V	2
Yellow	Hall A	3
Blue	Hall B	4
Green	Hall C	5

Applications

Laser Equipment

Logistics Automation

Medical Equipment

Robot

Q: Which is faster: brushless dc motor or brushed dc motor?

A: A brushless DC motor is generally faster and more efficient than a brushed DC motor. Without brushes causing friction and voltage drops, a BLDC motor can achieve higher speeds, smoother operation, and better power output while requiring less maintenance.
