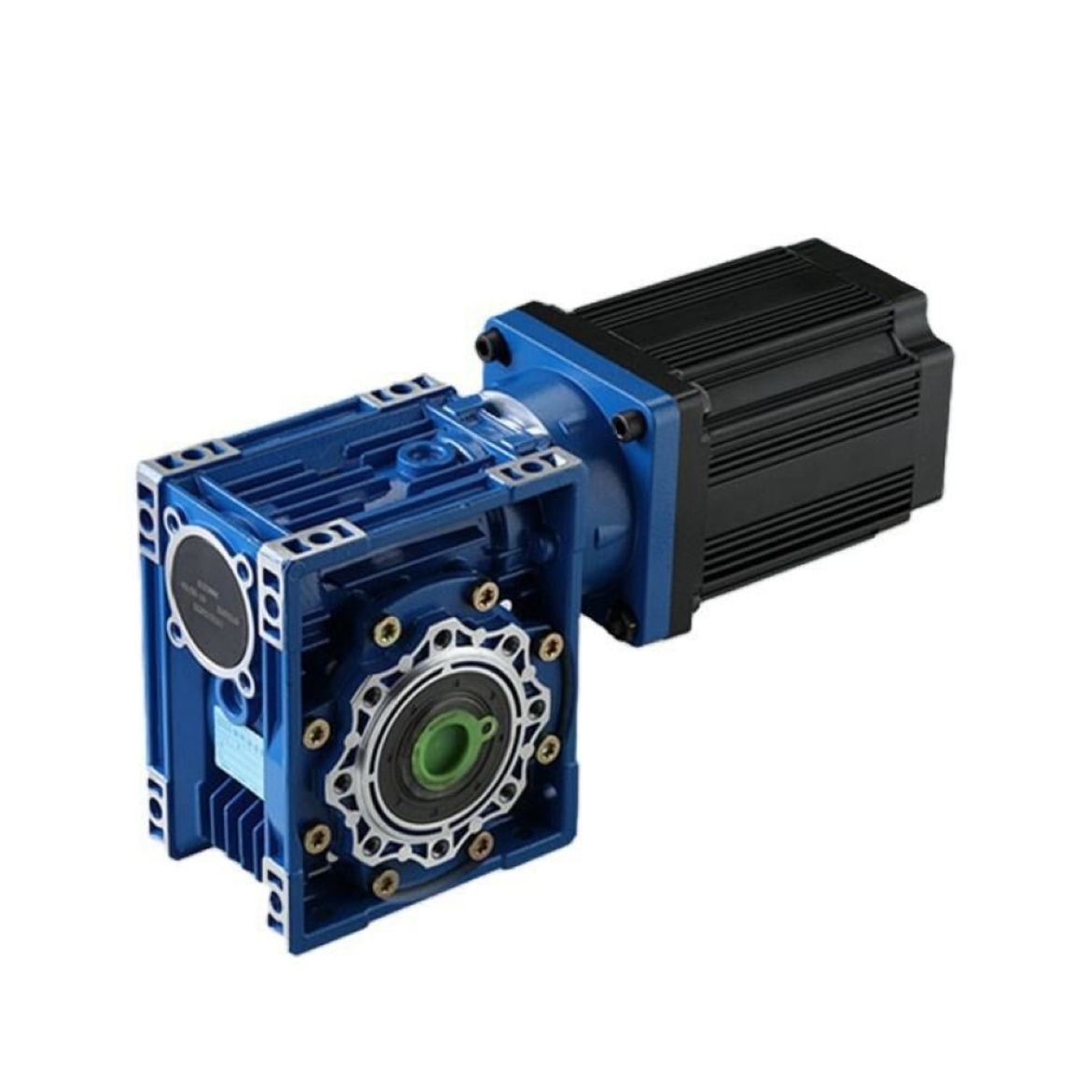

1000W 3-phase BLDC motor with worm gearbox runs on 24V, 36V or 48V, offering 2000 rpm rated speed, 2700 rpm no-load speed, and gear ratios from 7.5:1 to 100:1. Compact 110 mm size with customizable power, voltage, speed, shaft, length, and leads.
Specification
Motor Model |
BLDC-D5BLD1000-24A |
BLDC-D5BLD1000-36A |
BLDC-D5BLD1000-48A |
Voltage |
24V DC |
36V DC |
48V DC |
Rated Current |
52.08A |
34.72A |
26.04A |
No-load Current |
<12A |
<8.5A |
<6A |
Recommended Drive Model |
BLDC-C50 |
Motor Type |
BLDC Motor |
Power |
1000W |
No-load Speed |
2700 rpm |
Rated Speed |
2000 rpm |
Rated Torque |
3.18 Nm |
Peak Torque |
9.54 Nm |
Motor Dimension |
110 mm |
Shaft Diameter |
11 mm |
Construction |
Permanent Magnet |
Direction of Rotation |
CW/CCW |
Gear Ratio |
7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80,100 |
Certificates |
CCC, CE, RoHS, LVD, EMC |
Allowable Torque with Gear Head
Gear Ratio |
7.5 |
10 |
15 |
20 |
25 |
30 |
40 |
50 |
60 |
80 |
100 |
Rated Output Speed (rpm) |
267 |
200 |
133 |
100 |
80 |
67 |
50 |
40 |
33 |
25 |
20 |
Rated Output Torque (Nm) |
28.7 |
38.2 |
57.3 |
47.5 |
90.7 |
106 |
133.7 |
124 |
94 |
115 |
87 |
Note:
- This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
- The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

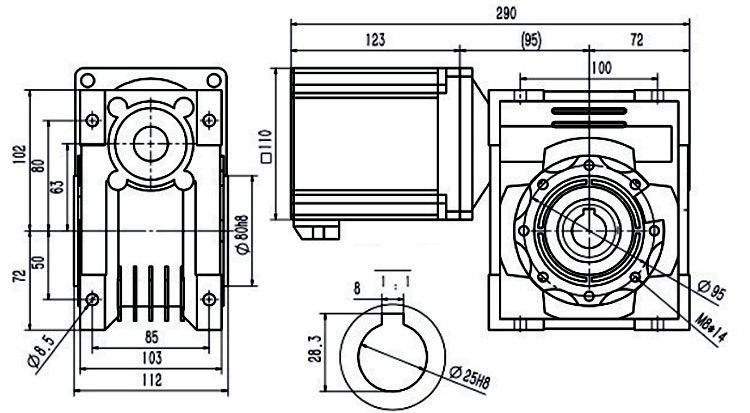

Dimension (Unit: mm)
Mounting screws are included with the gearhead

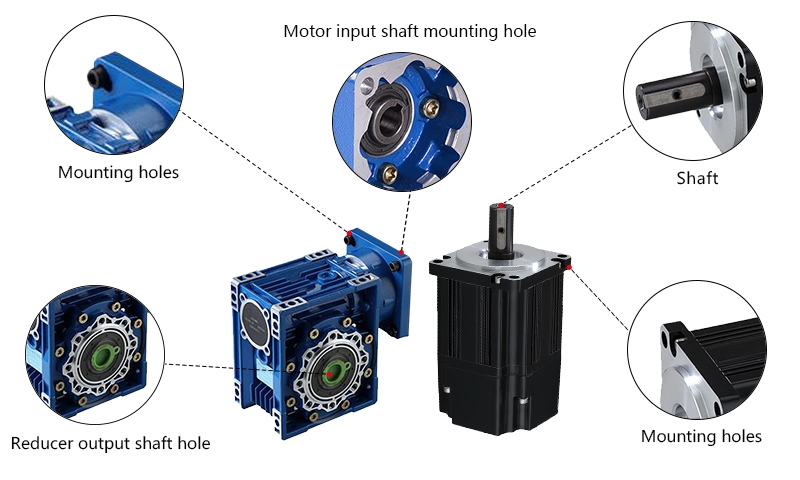

Details

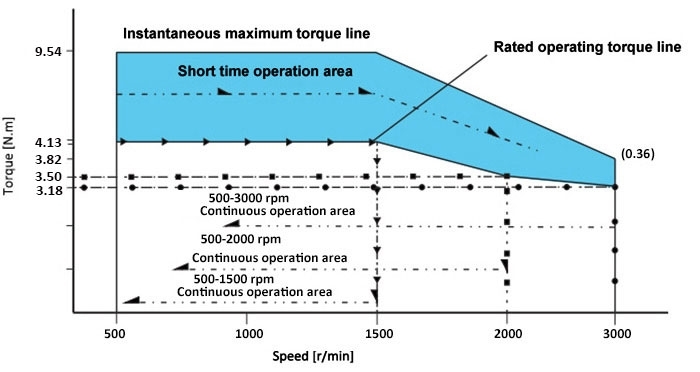

Speed - Torque Curve
- Instantaneous maximum torque line: The peak torque the motor delivers briefly at startup. Exceeding this level triggers the driver's over-current protection, shutting down the motor.
- Short-time operation area: The motor can operate within this torque range for limited periods at various speeds. Prolonged use generates excess heat, which can lead to shutdown or motor damage.
- Rated operating torque line: The rated torque of the motor can sustain at different speeds for continuous, long-term operation.
- Continuous operating area: Within this area, the BLDC motor can run non-stop across a range of speeds without overheating or triggering protection mechanisms.
Applications
Electronics Manufacturing
Q: What causes vibration in a DC worm gear motor?
A: Vibration in a BLDC worm gear motor is often caused by misaligned shafts, uneven or excessive load, poor mounting, inadequate lubrication, gear wear, or bearing damage. Electrical issues like voltage fluctuations and controller mismatch can also contribute. Proper installation, load matching, and regular maintenance help minimize vibration.
