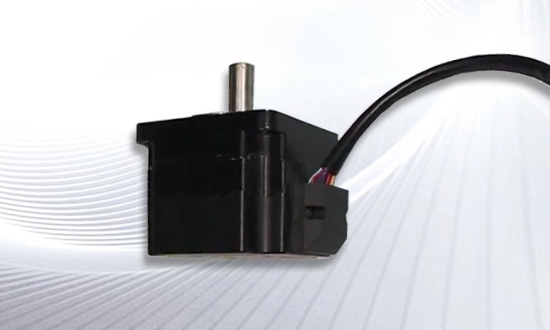

If you've ever worked with a BLDC motor and controller, you’ve probably faced this question: Can I extend the wires between the motor and the controller? And if so, how long is too long?
The short answer is yes, wire length does affect performance. But if you choose the right gauge, you can extend it safely without noticeable loss. Let’s break it down.
What Happens When You Use Long Wires?
Three main issues can arise when you extend brushless DC motor wires:
1. Voltage Drop
Longer wires have higher resistance. This causes a voltage drop between the controller and the motor.
- Less voltage at the motor → less torque and lower top speed.
- In extreme cases, the motor may fail to start.
2. Power Loss (Heat)
Voltage drop equals wasted energy, converted directly into heat.
- Longer wires → more heat → wasted battery life.
- Inefficient systems also run hotter, which can damage connectors or insulation.
3. Electrical Noise & EMI
Long unshielded wires can act like antennas, radiating electromagnetic interference.
- This can disturb the hall sensor signals or even reset the controller.
- Worse in sensorless systems that rely on back‑EMF detection.
How Long Is “Too Long”?
There’s no fixed maximum, but here are practical guidelines based on real-world use:
| Wire Length | Effect | Recommendation |
| < 1 meter (3 ft) | Negligible loss | Use any proper gauge (e.g., 16–18 AWG for small motors) |
| 1–3 meters (3–10 ft) | Minor voltage drop (<5% if gauge is correct) | Increase one gauge size (e.g., from 16 to 14 AWG) |
| 3–5 meters (10–16 ft) | Noticeable loss; possible start issues | Use 12 AWG or thicker; consider shorter battery-to-controller wires instead |
| > 5 meters (16 ft) | High risk of failure | Not recommended for most BLDC systems. Move controller closer to motor |
Golden rule: Keep the motor-to-controller wires as short as possible. It’s much better to extend the battery-to-controller wires, because DC current from the battery is less sensitive to length than the pulsed three‑phase current going to the motor.
How to Choose the Correct Extension Gauge
Use this quick selection table (for 24V–48V BLDC electric motors, 10–30A continuous current):
| Motor Current (RMS) | Length < 1m | Length 1–2m | Length 2–3m |
| 5–10A | 18 AWG | 16 AWG | 14 AWG |
| 10–20A | 16 AWG | 14 AWG | 12 AWG |
| 20–30A | 14 AWG | 12 AWG | 10 AWG |
| 30–50A | 12 AWG | 10 AWG | 8 AWG |
Rule of thumb: For every extra meter of length, go up one AWG size (smaller AWG number = thicker wire).
Special Case: Sensor Wires (Hall / Encoder / Temp Sensor)
If your BLDC motor uses hall sensors or a temperature sensor, these signal wires are even more sensitive to length.
- Max recommended length: < 2 meters (6.5 ft) for unshielded wires.
- Beyond 2 meters: Use twisted pair or shielded cable, and keep them away from high‑power motor wires.
- For very long runs (5m+): Use differential line drivers (e.g., RS‑422) or switch to a sensorless controller.
Practical Example
If you have a 24V, 15A BLDC electric motor driving a small electric boat. The controller must be placed 2.5 meters away inside a waterproof box.
The solution will be like:
- From the table: 15A @ 2.5m → 12 AWG motor wire.
- Keep hall sensor wires separate (use a shielded 5‑core cable, max 1.5m if possible).
- If you must go longer, move the controller closer to the motor and extend the battery wires instead.
Result will be: Less than 4% voltage drop, no start issues, and no EMI glitches.
Common Mistakes to Avoid
- Using the same thin wire for long extensions – causes overheating and weak performance.
- Coiling excess wire – turns the wire into an inductor, adding unwanted reactance. Cut or keep it straight.
- Extending hall sensor wires without shielding – leads to erratic motor behavior.
- Ignoring connector resistance – cheap bullet or Dupont connectors add more loss than 1 meter of cable.
Final Checklist Before Extending BLDC Motor Wires
- Calculate or measure your motor’s peak current.
- Measure the required wire length.
- Use the table to select one AWG thicker than you think you need.
- Keep motor wires separate from sensor/control wires.
- If length exceeds 3m, seriously consider moving the controller.
- Test at low throttle first. If the motor stutters, your wires are too long or too thin.
Conclusion
Yes, brushless DC motor wire length does affect performance. But with proper gauge selection, you can safely extend up to 2–3 meters without major losses.
For longer distances, always prioritize moving the controller closer to the motor and extending the battery side instead.
If you’re unsure about your specific setup, feel free to contact us with your motor specs and desired length, we can recommend the exact wire gauge and cable type for your application.
