A 1kW BLDC motor is an ideal power solution for electric vehicles, automated guided vehicles (AGVs), mobile robots, and industrial equipment that require efficient, reliable, and precise motion control. With advantages such as high efficiency, low maintenance, smooth speed regulation, and compact design, 1000W brushless DC motors are widely used in battery-powered and automation systems.
However, choosing the right motor configuration is not only about power output. The operating voltage, torque requirement, speed range, and mechanical structure all affect the final performance. For different applications, 24V, 36V, and 48V 1000W BLDC motors can be selected. When higher output torque or lower operating speed is required, a geared BLDC motor with a worm gearbox or planetary gearbox can provide a better solution.
Why Are 1000W BLDC Motors Widely Used?
A 1000W BLDC motor combines high power density with excellent efficiency, making it suitable for medium-duty electric drive applications. Compared with brushed DC motors, BLDC electric motors offer:
- Higher Efficiency: The brushless design reduces mechanical friction and energy loss, improving system efficiency and extending battery operating time.
- Low Maintenance: Without carbon brushes, BLDC electric motors have longer service life and require less maintenance during continuous operation.
- Smooth Speed Control: Hall sensor feedback and compatible controllers allow precise speed adjustment and stable operation under different loads.
- Compact and Reliable Design: The permanent magnet rotor structure provides strong output performance while maintaining a compact motor size.
Choosing the Right Voltage: 24V vs. 36V vs. 48V 1000W BLDC Motor
The voltage selection depends mainly on the battery system, current requirements, and application environment.
| Voltage | Recommended Applications | Typical Equipment |
| 24 Volt | Low voltage mobile systems | Small AGVs, electric carts, robots, compact equipment |
| 36 Volt | Medium power mobility | AGVs, scooters, warehouse vehicles |
| 48 Volt | Industrial & EV systems | Golf carts, AMRs, automation machines |
24V 1000W BLDC Motor Applications
A 24V 1000W BLDC motor is commonly used in low-voltage mobile systems where battery compatibility and compact design are important.
Typical applications include:
- Electric carts
- Small utility vehicles
- Battery-powered equipment
- Mobility devices
- Compact robots
For these applications, a 24V system provides easy integration with common battery packs while delivering sufficient torque for daily operation. A standard 1000W BLDC motor is suitable when the application requires higher speed and smooth motion control.
For example, the 24V/36V/48V 1000W BLDC motor provides a 3-phase brushless design with Hall sensors for accurate speed control and supports different voltage configurations for electric vehicles, robotics, and industrial equipment.
36V 1000W BLDC Motor Applications
A 36V 1000W BLDC motor offers a balance between power performance and energy efficiency. It is commonly used in AGVs and mobile robots, automated guided vehicles require reliable movement, stable speed control, and efficient battery usage.
A 36V BLDC motor can provide:
- Smooth acceleration
- Stable low-speed operation
- Efficient energy consumption
Typical applications include:
- Warehouse AGVs
- Material handling robots
- Autonomous transport platforms
- Electric Mobility Equipment
- Electric scooters
- Small transportation vehicles
- Light-duty electric vehicles
48V 1000W BLDC Motor Applications
A 48V 1000W BLDC motor is preferred for applications requiring longer operating time, higher efficiency, and heavier loads. Compared with lower-voltage systems, a 48V motor operates with lower current, which helps reduce electrical losses.
Common applications include:
- Golf carts
- Electric vehicles
- Industrial transport vehicles
- AMRs
- Automation equipment
For higher-load applications, a gearbox can further improve output torque and reduce speed.
When Should You Choose a 1000W BLDC Gear Motor?
Although a standard BLDC motor offers high-speed and efficient operation, some applications require higher starting torque, lower output speed, stronger load capacity, and improved mechanical advantage. In these cases, adding a gearbox is an effective solution to optimize motor performance, increase torque output, and meet the requirements of demanding applications.

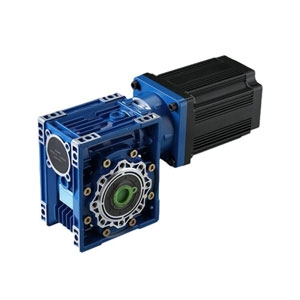

1000W BLDC Worm Gear Motor for High Torque Applications
A worm gear motor is ideal for applications requiring high torque output and stable low-speed operation. It is widely used in electric carts, conveyor systems, lifting equipment, industrial machinery, and material handling systems where reliable power transmission, precise control, and continuous operation are required. Our 1000W BLDC worm gear motor combines a 1000W BLDC motor with a worm gearbox, providing high torque output and multiple gear ratio options for different speed and load requirements.
| Model | BLDC-GEAR-W1000 |
|
Power |
1000W |
| Voltage | 24V/36V/48V DC |
| Rated Current | 52.08A/34.72A/26.04A |
| Rated Speed | 2000rpm |
| Rated Torque | 3.18Nm |
| Gear Ratio | 7.5, 10, 15, 20, 25, 30, 40, 50, 60, 80,100 |

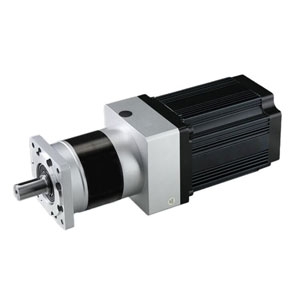

1000W BLDC Planetary Gear Motor for Precision Motion
For applications requiring high torque density, compact size, and efficient power transmission, a planetary gearbox is an excellent choice. It is widely used in AGVs, robotics, automation equipment, electric vehicles, and precision motion systems where reliable torque output, smooth operation, and accurate motion control are essential.
| Model | BLDC-GEAR-P1000 |
|
Power |
1000W |
| Voltage | 24V/36V/48V DC |
| Rated Current | 52.08A/34.72A/26.04A |
| Rated Speed | 3000rpm |
| Rated Torque | 3.18Nm |
| Gear Ratio | 3, 4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250 |
The BLDC planetary geared motor uses a planetary gearbox design to achieve efficient power transmission with high reduction ratios, making it suitable for applications requiring strong torque and reliable operation.
Customized 1000W BLDC Motor Solutions
Different applications require different motor configurations. We provide customized 1000W BLDC motor solutions including:
- 24V, 36V, and 48V voltage options
- Standard BLDC motors
- Worm gear motors
- Planetary gear motors
- Customized shaft, speed, motor length, and leads
- Matching motor controllers and accessories
Whether you need a motor for an electric vehicle, AGV, robot, or industrial automation system, BLDC.com can provide a suitable brushless DC motor solution based on your application requirements.
